Modular Flat Gate Valve Type SMFS-HD

Component for silo and container systems with optimal sealing - hand driven

Schieber MMFS-HAreas of application
The SMFS type flat gate is attached to silo and vessel discharges and assures the optimal sealing of stored dusty and granular bulk goods up to 8 mm in size. This modular
gate allows the installation of various drive configurations - manual, pneumatic, or electric motor driven - on the same base frame.

Details /Explanation
➔ Grain size up to 8 mm
➔ High quality gate plate sealing; packing box easily adjustable and exchangeable
➔ Steel guide on the slide gates upper side
➔ Large, easily removable protective covers
➔ Special sizes and designs upon request

➔ Frame steel or stainless steel
➔ Slide plate made of stainless steel 1.4301, grinded
➔ Finish hammer tone silver-grey
➔ Other finishings upon request

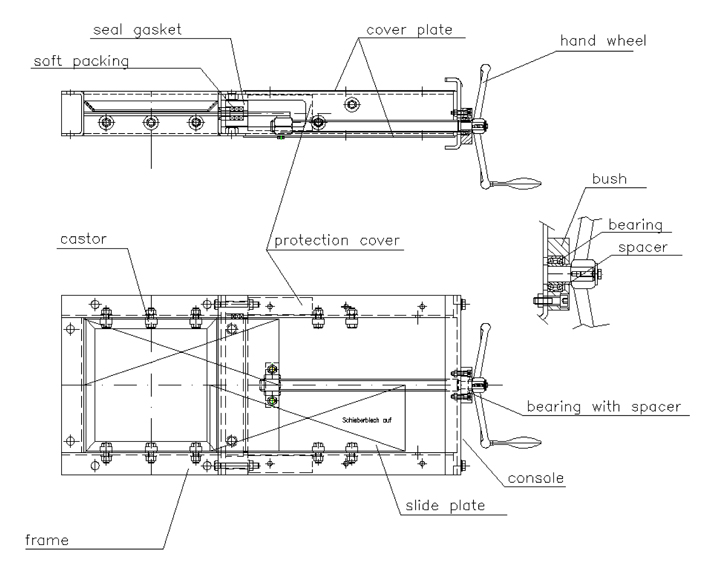

Spare parts drawing Spare parts drawing

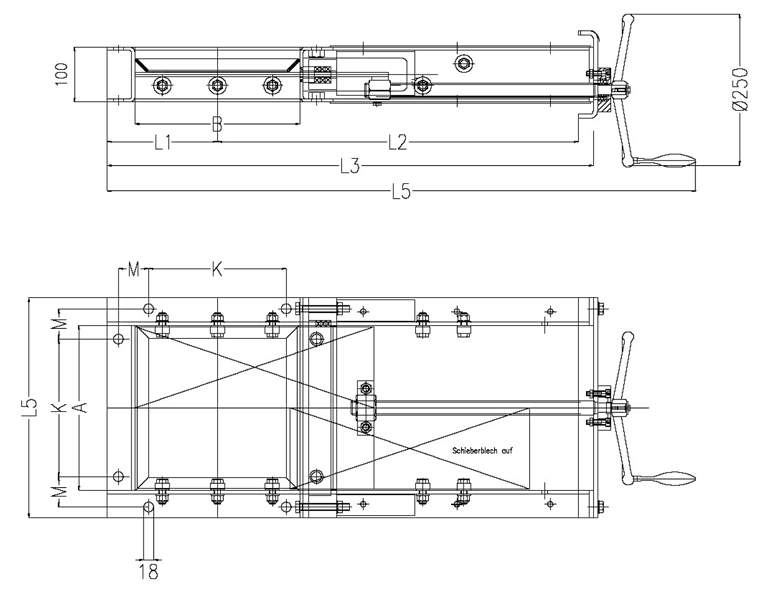

Dimensional drawing

Dimensional drawing
