Flexible Spiral Conveyor
Flexible spiral conveyors have been used for many years in various industries.
The innovative technique as well as the outstanding quality of these conveyors has given them a leading position in the market.
Die Förderschnecken als mechanisches Fördersystem arbeiten prinzipiell staubfrei, da keine Förderluft und damit auch keine Filterung benötigt wird.
Die staubdichte Bauweise sorgt für sauberes und sicheres Fördern Ihrer Produkte bei geringen Investitions- und Betriebskosten.
Die flexible Verlegung der Förderschnecken ist nicht nur bei der Integration in bestehende Systeme von Vorteil, auch neue Anlagen kommen mit weniger Platz aus oder können für zusätzliche Komponenten ausgelegt werden.
Advantages:
- dust free and gentle conveying of fragile products in closed system
- high conveying capacity with a small cross section and low motor power
- large range of applications
- transport of dry powders of all sorts
- conveying distances of up to 40 m with one conveyor
- conveying capacities between 0,2 and 20 m3/h
- simple assembly
- easily integrated with existing machines
- easy cleaning
- design for CIP-cleaning
- flame proof design acording to European and international standards
- pressure- and vacuum-tight as well as explosion-proof
Areas of application | |
---|---|
Chemical industry:
|
Products: baryte, bentonite, borax, calcite, cellulose, ceramics, French chalk, metal oxides, mica, resin, silicic acid, soda ash, sulfamic acid, zinc stearate, ... |
Basic products/ General Industrial Application:
|
Products: aluminium silicate, masonry rendering, gypsum, insulating fibers, lime, ceramic powder, chalk, metal powder, quarz powder, sand, steel balls, clay, cement, ... |
Application in plastics technology:
|
Products: |
Foodstuff industry:
|
Products: coffee, dry vegetables, filter aids, finished soups, flavours, gelatine, meal, milk powder, nuts, oatmeal, whey powder, salt, starch, sugar, tea, tobacco, yeast, ... |
Application in environmental technology:
|
Products: activated carbon, adsorber, cellulose fibers, filter aid, filter dust, gypsum, lime, precipitants, sodium carbonate, wood dust, ... |
Materials:
Spiral:
hardened spring steel and stainless spring steel
Conveying pipe plastic materials:
- polyamide, standard hose
- polyurethane for abrasion resistance
- polypropylene, electrically conductive
- polyethylene for corrosion best resistance
- semi rigid version, metal hose with plastic liner of various qualities for highest reliability of operation
Metal:
flexible metal hose in steel or stainless steel semi rigid version with steel- or stainless steel-tube with
prefabricated bends
Without conveying pipe:
to install into existing containers or troughs

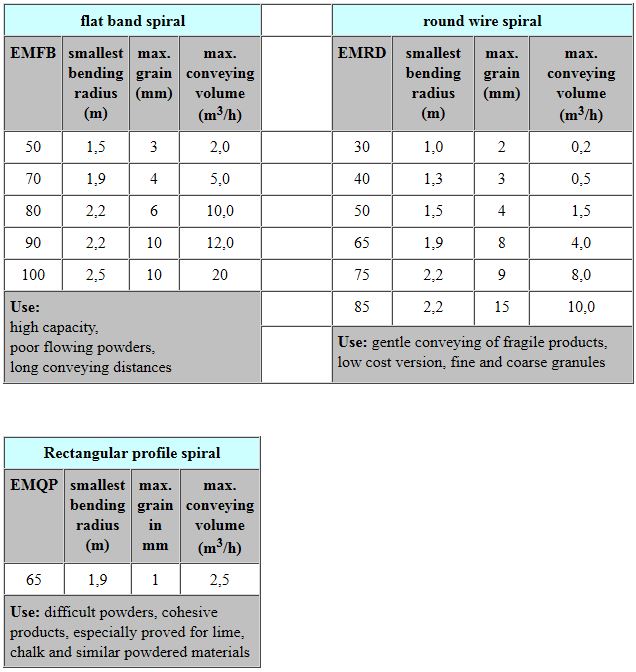

Conveying spirals in the range:
