Knife Gate Valves
A series of valves especially designed for industrial bulk handling service applications.
Features:
- Can be used as terminal fitting

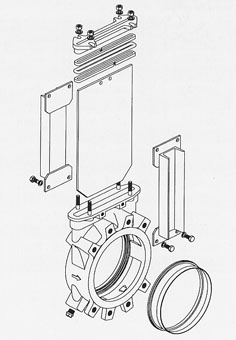

- Casted Monoblock Design
- The gate is supported by casted wedges
- Two flush parts for water and air allow cleaning of the seat area
- Threaded body holes for easy centering
- The gland packing can be fastened and changed during operation
- Installation in horizontal position
- Can be dissassembled. Material specific recycling is possible

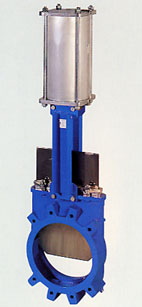

- Possible actuators: hand wheel, chain wheel, pneumatic or electric actuators
General applications:
- Silo outlets
- Power plants
- Food and beverage
- Chemical plants
- Mining industry
- Pneumatic conveyor technology

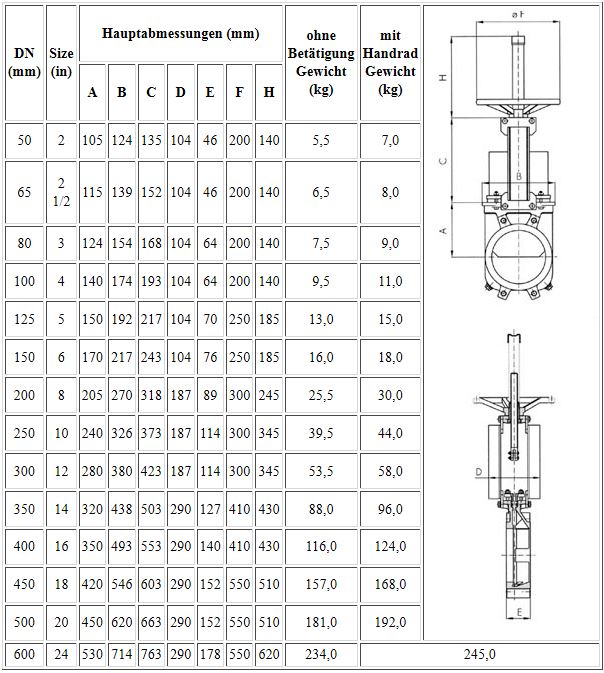

| Technical Data | |||
|---|---|---|---|
| Nominal diameter: | DN 50 -DN 600 bigger sizes upon request |
Body: | GG-25, CF8M |
| Faxe-to-face: | works standard | Gate: | AISI 304, AISI 316, AISI 316 TI |
| Flange accomodation:: |
DIN 2501 PN 10 ANSI B 16.5, Class 150 |
Sealing: | Metal or EPDM (other materials depending on medium and temperature) |
| Flange surface design: |
DIN 2632 | Gland packing: | Braided fibre plus an EPDM O-Ring (other materials depending on medium and temperature) |
| Marking: | DIN EN 19 | Gland follower: | Aluminium, Nodular Cast Iron, Stainless Steel 1.4408 |
| Tightness check: | DIN 3230 T3 BN (Leakage Rate 1), with soft sealing, ISO 5208 Category 3 |
Seat retainer: | Stainless Steel 1.4301, 1.4401 |
| Temperature range: |
depending on packing- and seal material | Support plate: | Steel |
| Pressure load: | Operating pressure: Counter pressure (Seat) DN 50 - DN 250: 10 kg/cm2 3 kg/cm2 DN 300 - DN 400: 6 kg/cm2 2 kg/cm2 DN 450: 5 kg/cm2 1,5 kg/cm2 DN 500 - DN 600: 4 kg/cm2 1 kg/cm2 |
Head: | Steel |
| EINSATZGEBIETE, z.B.: Siloauslässe (in metallisch oder weichdichtender Ausführung lieferbar) / Kraftwerke Lebensmittel- und Getränkeindustrie / Chemische Anlagen / Bergbau / Pneumatische Fördertechnik |
|||
For DN 400 or bigger nominal diameters we recommend to use angular gears for valves.
Subject to change without notice.
