Flange Mounted Valves

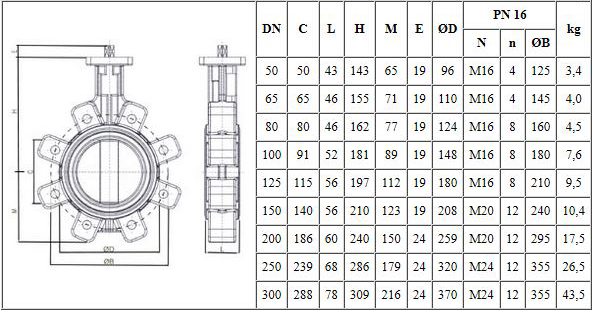

Butterfly valve with threaded holes.
This type enables the one sided lugging of pipes.
Features:
- Absolutely tight sealing with flow in either direction
- The valve body and disc are accurately machined which results in low operating
torque and long service life and reliability.
- Triple shaft bearings prevents shaft deflection and guarantees optimum guidance even after many years of operational service.
- Can be disassembled, material-specific recycling possible.
- Maintenance-free
- Fully repairable valve
- Single flange mounting is possible (please request details)
General applications:
- Chemical and petrochemical industries
- Water and wastewater technology
- Pneumatic materials handling technology
- Shipbuilding
- Power generation industry
- Food industry
- Civil engineering
- For paint and lacquers, a silicon-free version is available
Technical Data | |||
---|---|---|---|
Nominal diameter: |
DN 20 -DN 600 (DN 20 only PN 10/16 |
Marking: | DIN EN 19 |
Face-to-face: | EN 558 Series 20 (DIN 3202 T3 K1) ISO 5752 Series 20 API 609 Table 1 BS 5155 Series 4 NF E 29-305.1 |
Tightness check: | DIN 3230 T3 BO, BN (leakage rate 1) ISO 5208, Category 3 API 598 Table 5 ANSI B 16-104, Class VI |
Flange accomodation: | DIN 2501 PN 6/10/16 ANSI B 16.5, Class 150 MSS SP44 Class 150 AWWA C 207 AS 2129 Table D and E BS 10 Table D and E JIS B 2211-5 K JIS B 2212-10 K |
Temperature range: | -20°C to +160°C depending on pressure, medium and material |
Lap-joint flange: | DIN 2641 and DIN 2642 | Operating pressure: | max. p 16 bar |
Weld-on flange: | DIN 2576 | Differential pressure: | max. delta p 16 bar |
Flange surface design: |
DIN 2526 Form A-E, ANSI RF | Vacuum: | 0,2 bar absolute, depending on medium and temperature |
Top flange: | EN ISO 5211 NF E 29-402 |
