Modular Flat Gate Valve Type SMFS-GM

Shut-off component for silo and container systems with optimal sealing - motor driven

Schieber MMFS-GMAreas of application
The SMFS type flat gate is attached to silo and vessel discharges and assures the optimal sealing of stored dusty and granular bulk goods up to 8 mm in size.
The motor driven flat gate can also be used as a proportional slide gate. This modular gate allows the installation of various drive configurations - manual, pneumatic, or electric motor driven - on the same base frame.

Details / Explanation
➔ Grain size up to 8 mm
➔ High quality gate plate sealing; packing box easily adjustable and exchangeable
➔ Steel guide on the slide gates upper side
➔ Large, easily removable protective covers
➔ Special sizes and designs upon request

Finish
➔ Frame steel or stainless steel
➔ Slide plate made of stainless steel 1.4301, grinded
➔ Finish hammer tone silver-grey
➔ Other finishings upon request

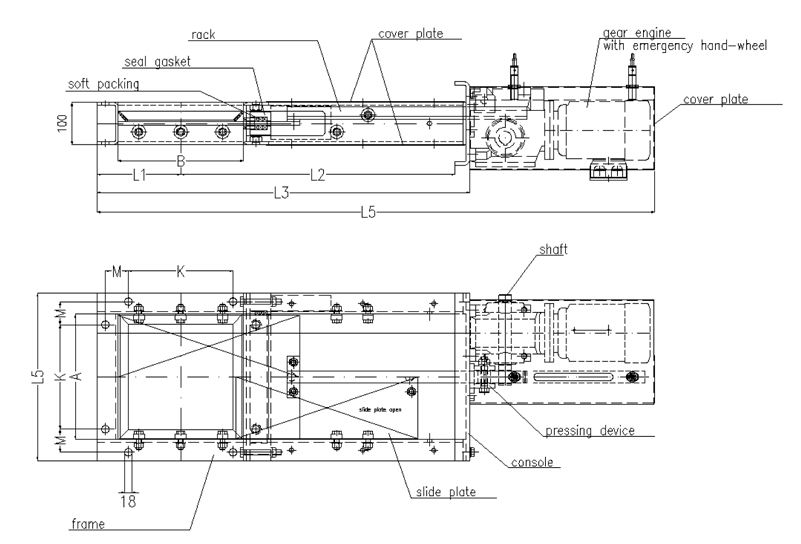

Dimensional and spare parts drawing

Dimensional and spare parts drawing

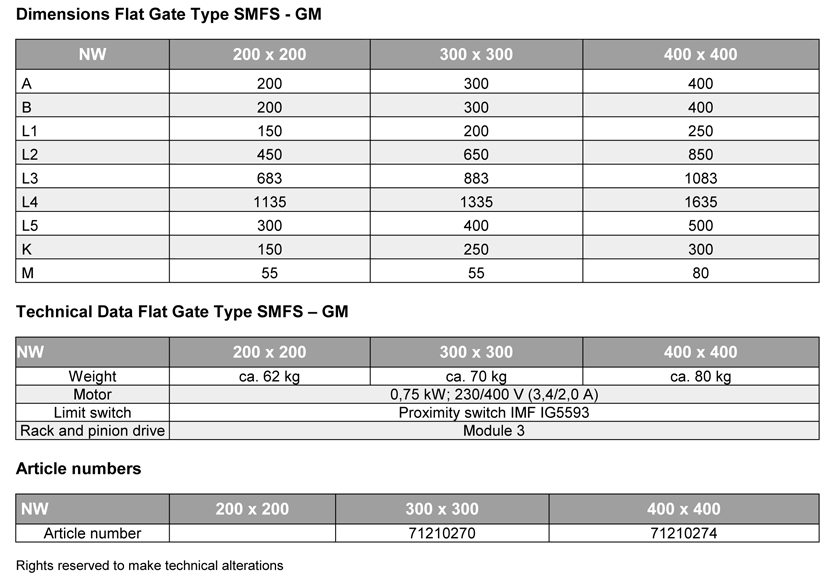

Dimensions
