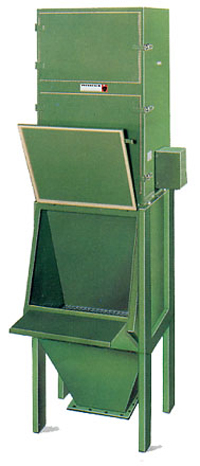

Sack Emptying Filter with Fan
Application:
Only for discontinuous operation.
Specially designed for the emptying of sacks with dusty materials. For assembling directly above the material bunker.
Description:
Housing with clean air section ventilator and dusty air section filter chamber, each accessable via large service doors. The emptying compartment with removable grating is equipped with a feed opening which has to be closed during the cleaning of the envelope bag filter insert. Electromechanical dedusting via cleaning motor.
The sack emptying filter can be delivered in two different sizes.
We recommend the following:
- for short-run sack emptying size AM 135
- for long-term sack emptying resp. very fine particulates size AM 235
| Type | m³/h | Pa | kW |
|---|---|---|---|
| V 31 | 900 | 1750 | 0,75 |
| V 32 | 1500 | 1600 | 1,5 |
| V 33 | 2300 | 1600 | 2,2 |
| Type | Filter surface (m²) |
|---|---|
| 135 | 13 |
| 225 | 23 |
