Impeller Packer For Valve Bags

The impeller packer consists of a valve bag filling system and an electronically controlled weighing system.

TurbinenpackerThis impeller packer is used for bagging powders and granular materials of small particle size into 10 kg up to 50 kg valve bags.Primarily used in the Building Materials Industry, it packs cement, lime, gypsum, plaster mixes and other materials with similar handling characteristics.

Outputs up to 600 bags/hour can be obtained from a single machine.
Higher outputs are achieved by installing machines side by side.The impeller packer has been designed for both manual and automatic bag placing.

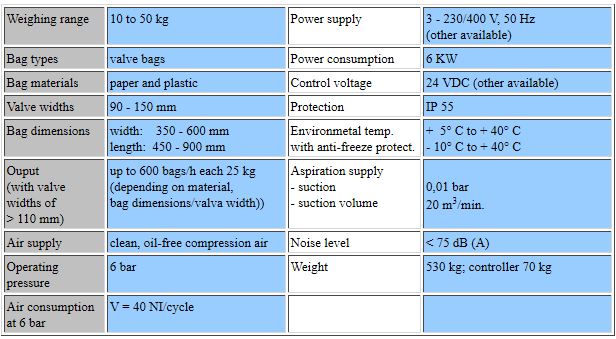

Technical Data
Tabelle Turbinenpacker

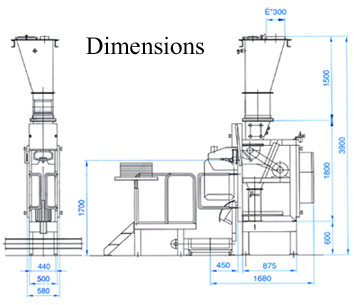

Skizze Turbinenpacker
